Products

Aplus Stud Framed Partition

Lightweight and economical metal frame partition system

Metal frame partition system from Aplus is a lightweight system, economical, and easy to install. This system consists of Aplus Gypsum Board which is installed using screw on metal stud frame.

Final finishing using compound system on gypsum board joint for resulting smooth and flat surface following room design. Produced from galvalume/galvanized, it is easy and economical because it can be ordered as required. Speci- fications according to ASTM A653, C645, and C840.

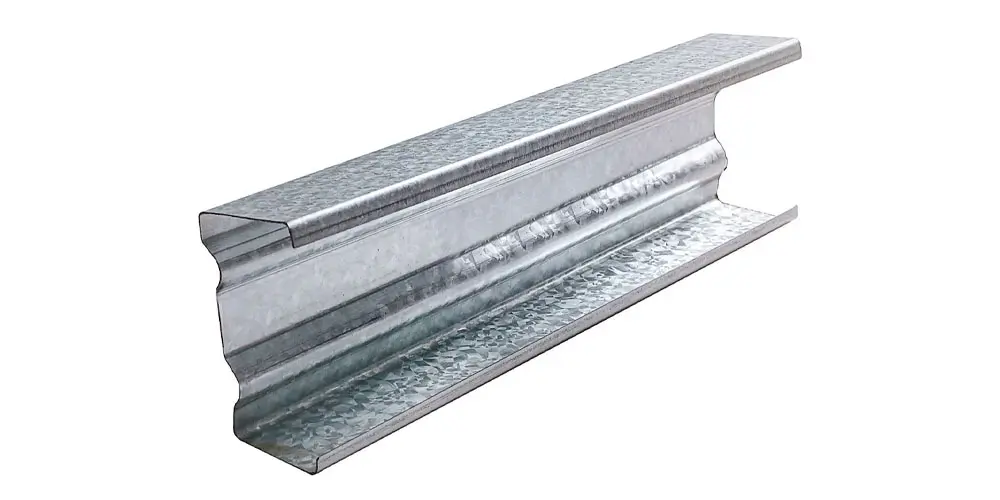

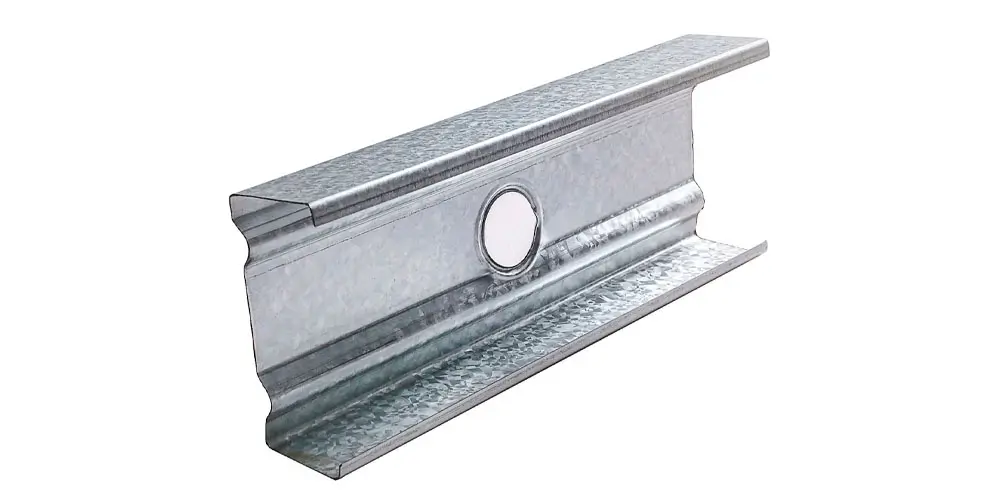

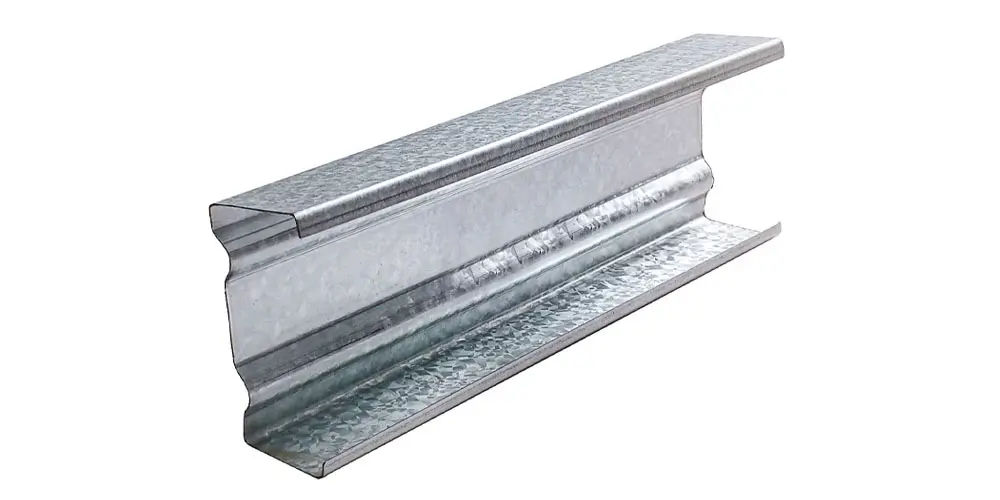

Metal Stud
Produce each frame with high-quality material and premium anti-rust coating. Combine with profil shape which is specially designed to achieve mechanical performance that meets international standards.

Type 76

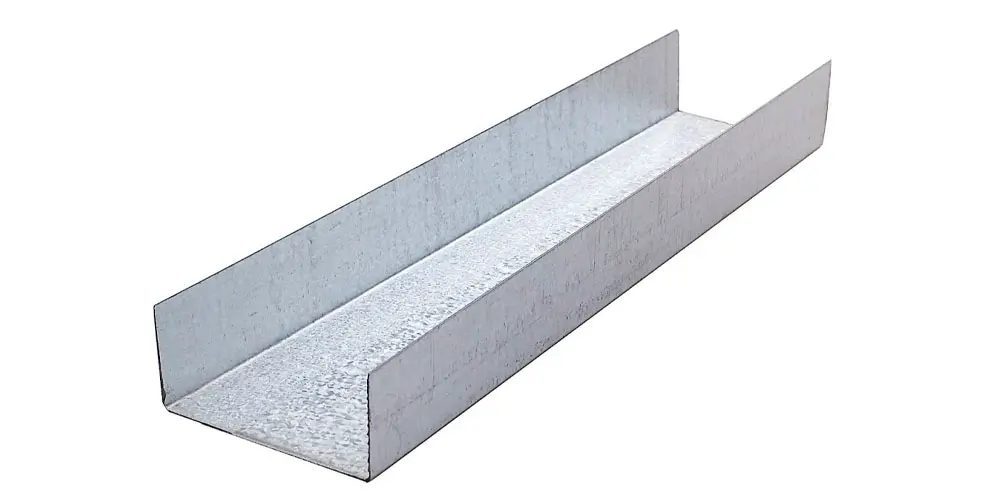

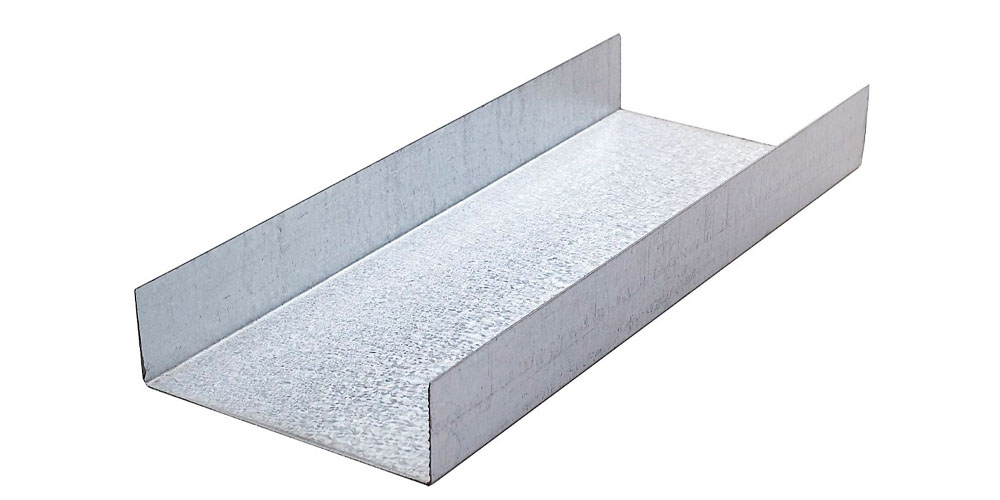

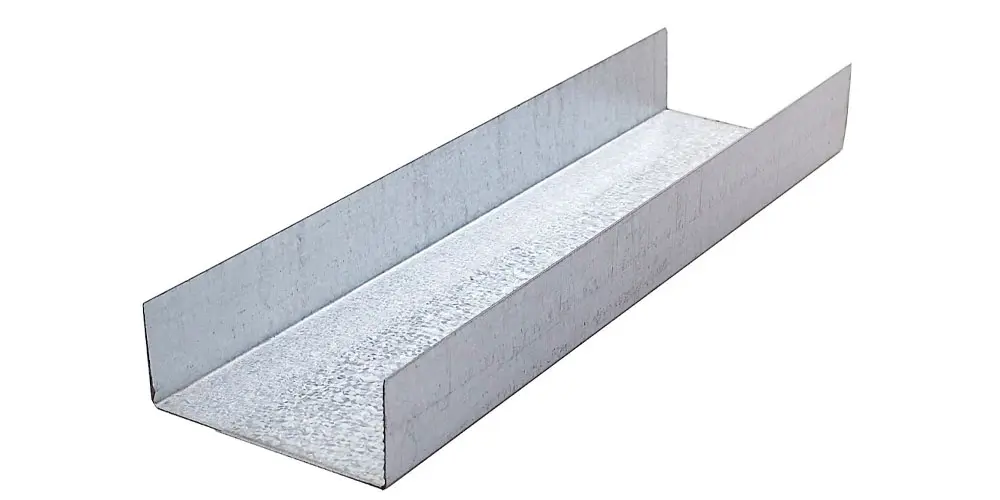

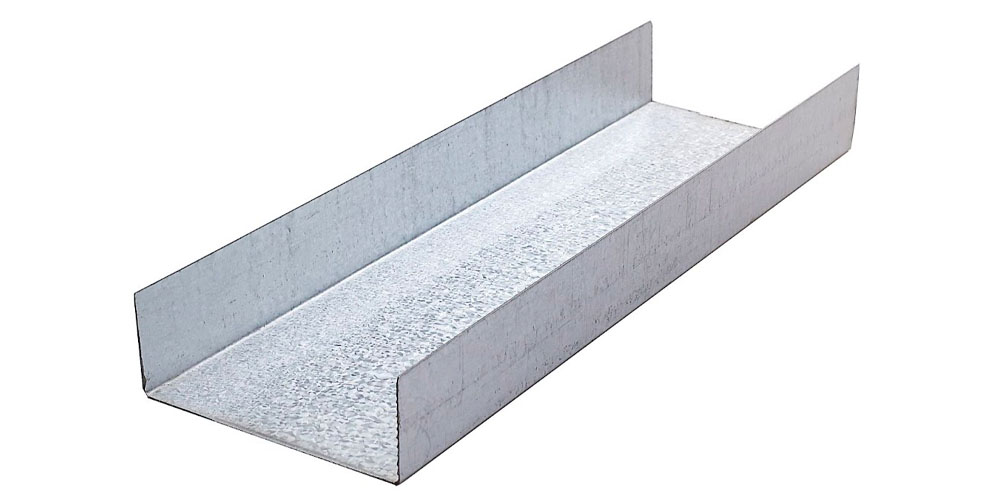

U-Runner

Component from galvanized light steel which is used for top and bottom tracks of the Aplus drywall system. Aplus U-Runner is produced according to ASTM C645 and the materials are produced with SNI standards.

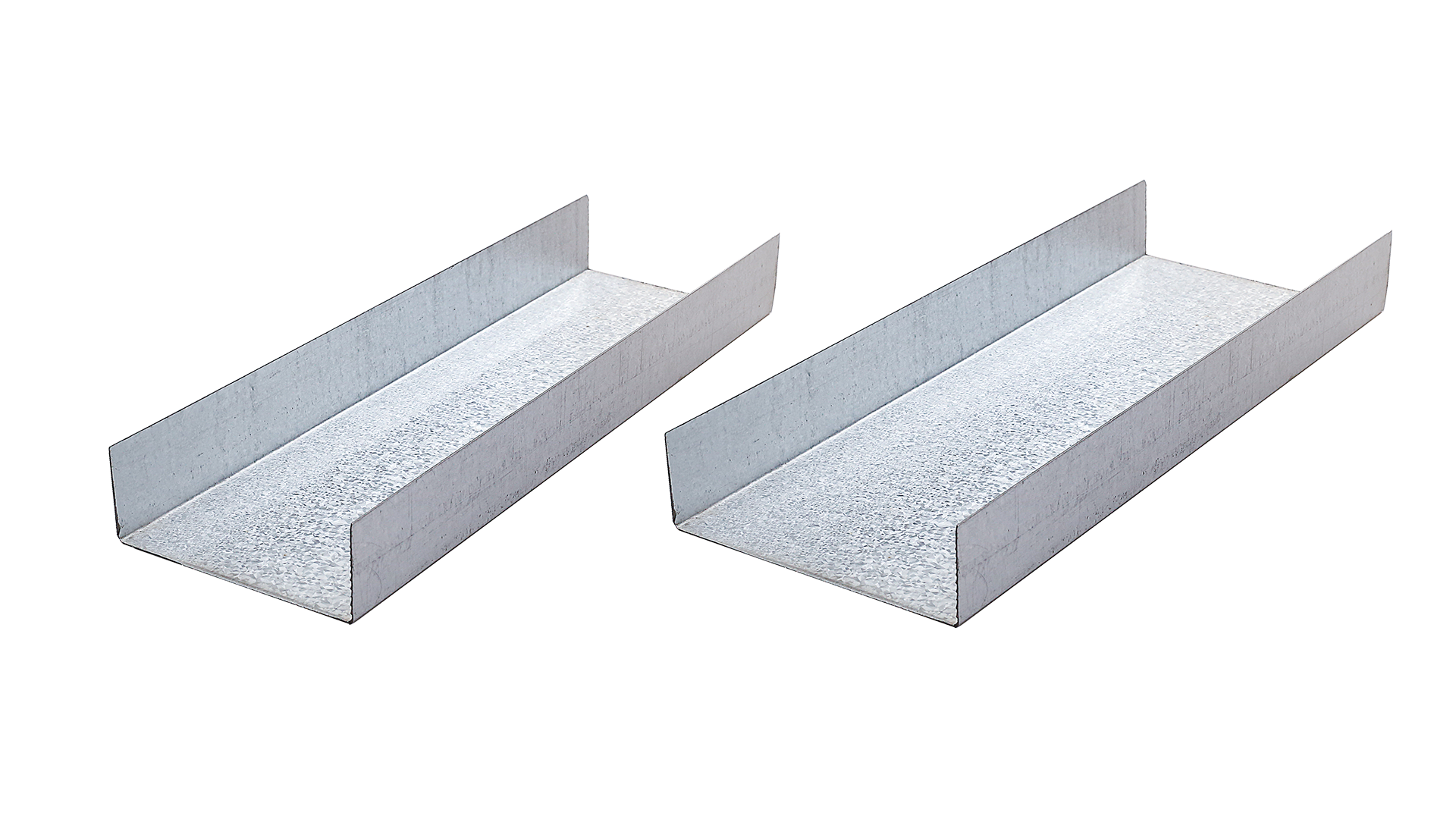

Type 76 & 100

Discover more solutions from Aplus for your building needs.

Type 76

  • Size : 34 x 75 mm
  • Thickness (± 0,02 mm tolerance):
    • 0,40 MM TCT / 0,35 MM BMT
    • 0,55 MM TCT / 0,50 MM BMT
    • 0,65 MM TCT / 0,60 MM BMT
    • 0,75 MM TCT / 0,70 MM BMT
    • 1,00 MM TCT / 0,95 MM BMT

Specifications may change without further notice. Please contact Aplus sales team for further information.

Type 76

  • Size : 20 x 75 mm
  • Thickness : 0,35 mm TCT / 0,30 mm BMT (tolerance +/-0.02 mm BMT)

Type 100

  • Size : 20 x 100 mm
  • Thickness : 0,35 mm TCT / 0,30 mm BMT (tolerance +/-0.02 mm BMT)

Specifications may change without further notice. Please contact Aplus sales team for further information.
