Products

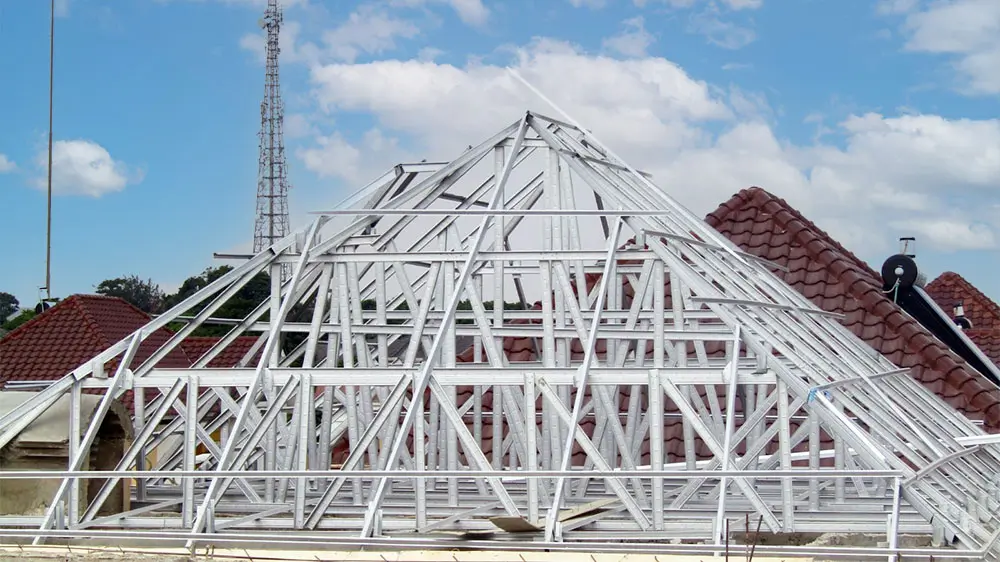

Aplus Truss

Light metal steel for roof frame

Aplus Truss is an environmentally friendly lightweight steel used for the installation of sturdy roof frames. Aplus C Truss features a precise and innovative profile with ribbed reinforcements, making the building framework strong.

Advantage:

  • Lightweight and easy to install, saving work time
  • High-quality Hi-Ten G550 (SNI)
  • Images and designs are according to AISI standards
  • Corrosion/rust resistant
  • Non-flammable
  • Insulation placement is very easy and effective
  • Environmentally friendly as it is recyclable
  • Has an asymmetric batten profile to prevent tiles from easily loosening

Discover more solutions from Aplus for your building needs.

Specifications

  • Height: 75 mm; 80 mm
  • Upper Width: 34 mm; 28 mm
  • Lower Width: 36 mm; 30 mm
  • Thickness (± 0,02mm tolerance):0.55 mm TCT / 0.50 mm BMT
    0.65 mm TCT / 0.60 mm BMT
    0.75 mm TCT / 0.70 mm BMT
    0.78 mm TCT / 0.73 mm BMT
    1.00 mm TCT / 0.95 mm BMT
    (Sizes are subject to change without notice. Please contact us for other size options)
  • Length: 6 m; Custom with minimum order
  • Anti-rust coating: Galvalume AZ-100
